Mandrel Rubber Hose

RYLTEC 2200

RYLTEC 2200

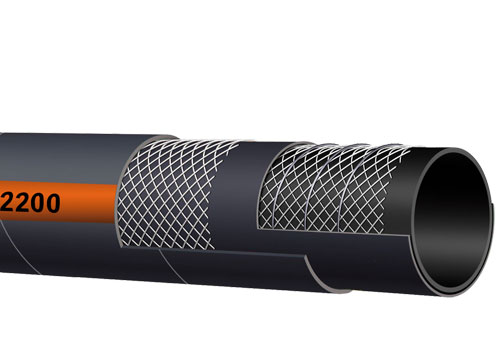

NBR rubber mandrel hose with textile reinforcement steel wire spiral.

  • Hose for hydrocarbon suction and propulsion, unloading trucks, fuel transfers with a maximum aromatic content of 50%, and oils in return line circuits.
  • Standard length: Available in 40m lengths up to Ø 51mm and in 20m lengths from Ø 60mm onwards.
  • Temperature: -30°C to +70°C
  • WP: 16 bar ISO1307
  • Marking:
    RYLTEC 2200 FUEL & OIL SUCTION AND DISCHARGE - WP 16 BAR (240PSI) - Ref. Ø
Item Code Ø (mm)
C313019 3167 19x30
C313025 3416 25x36
C313030 3412 30x40
C313032 3413 32x42
C313035 3400 35x46
C313038 3401 38x49
C313040 3402 40x51
C313045 3403 45x57
C313051 3404 51x64
C313060 3405 60x74
C313070 3407 70x85
C313076 3408 76x91
C313080 3409 80x97
C313090 3410 90x104
C313102 3411 102x117
C313152 3414 152x168
